Overview

Basic Info.

Installation	DIN Rail
Application	AC/DC System
Size	Small
Operation Voltage	Low Voltage
Shape	Cuboid
Material	Ceramic
Certification	ROHS, CE, TUV
Brand	Onccy
Nominal Discharge Current	20ka
Lmax	40ka
Pole	2p/3p
I Ec/En/UL Category	Type2
Degree of Protection	IP20
Transport Package	by Sea/Air
Specification	Export Cartons
Trademark	Onccy
Origin	China
HS Code	8536490090
Production Capacity	1000000PC/Year

Packaging & Delivery

Package Size25.00cm * 25.00cm * 25.00cm Package Gross Weight1.200kg

Product Description

FAQ
Q: Are you trading company or manufacturer ? A: We are manufacturer. We have 30,000 square meters of self-owned plant. Q: Do you have any certificates? A: Yes,we have UL, TUV, CB, SAA, CCC, CE and other certifications. Q: How do we make a quick response to customer , 5 inquiry ? A: Our professional team will reply you online or by email,Skype, whatsApp and so on. Q: Do you have any exporting experience?Which countries did you export to before? A: We have lots of exporting experience and customers in many countries,such as America, Japan,Australia,UAE,Canada,Vietnam,Turkey,Thailand,Russia,UK,etc. Q:Can you supply samples for checking ? A: Yes, we can supply samples, pls contact for detailed required. Q:How long is your delivery time? A: Generally it is within 3days for small qty. Or it is around 15-20 days to a general order. Q: What is the standard of package of your goods? A: Export standard package or special package according to customer requirement. Q:How about inspection? A: We have the whole inspection system from raw material to end products include transient test, delay test,mechanical life test and so on.Q:What is the service offered by company? A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements. We also have the professional sales team to offer good service from pre-sale to after-sale.

Product Benefits

• Prewired Modular Complete Unit, Consisting of A Base Part and Plug-in Protection Modules.
• Plug-in Protection Module, Easily Installation and Maintainance.
• High Energy Varistor, Response Time Less Than 25 Nanosecond.
• Optional Remote Signalling Contact(FM) for Monitoring Device (Floating Changeover Contact).

Technical Data

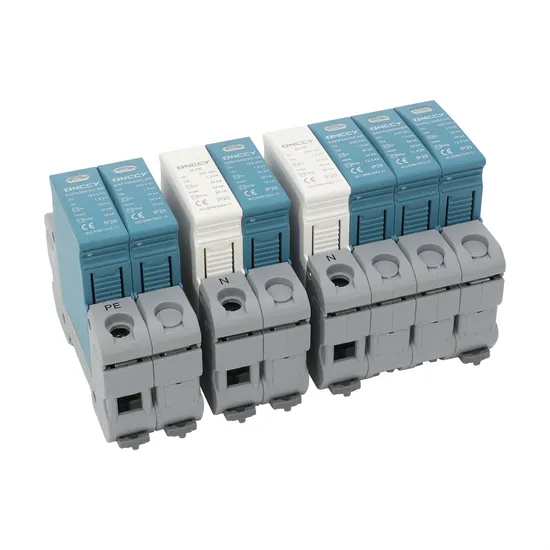

AC Surge Protective Device SPD T2 385V Imax40KA 1+NPE

Product Description

Product Benefits

• 1+NPE Pole
• AC Surge Protective Device T2
• Discharge currents Imax 40A
• Features (plug-in, remote signaling, compact, narrow design for little space)
• Remote signal with RC to choose
• Maximum Continuous Operating Voltage 385V

AC Surge Protective Device SPD T2 420V Imax40KA 3+NPE

Product Benefits

• 3+NPE Pole
• AC Surge Protective Device T2
• Discharge currents Imax 40A
• Features (plug-in, remote signaling, compact, narrow design for little space)
• Remote signal with RC to choose
• Maximum Continuous Operating Voltage 420V

EAP Series Surge Protection Device was designed and manufactured, complying standard GB/T18802.1 IEC/EN 61643-11 , Rated voltage 275V~,320V~,385V~,440V~,Maximum discharge current 100kA,High Energy Varistor, high effective for lightning protection.

IEC Electrical
Nominal AC Voltage (50/60Hz)	Uo /Un	230V 230V 230V 400V
Maximum Continuous Operating Voltage (AC)	Uc	275V 320V 385V 440V
Nominal Discharge Current (8/20 μs)	In	20kA 20kA 20kA 20kA
Maximum Discharge Current (8/20 μs)	Imax	50kA 50kA 50kA 50kA
Impulse Discharge Current (10/350 μs)	I Imp	12.5kA 12.5kA 10kA 10kA
Specific Energy	W/R	39kJ/Ω 39kJ/Ω 25kJ/Ω 25kJ/Ω
Charge	Q	6.25As 6.25As 5As 5As
Voltage Protection Level	Up	1500V 1500V 1800V 2000V
Response Time	tA	<25ns
Back-Up Fuse (max)		160A gL
Short-Circuit Current Rating (AC)	I SCCR	25kA / 50kA
TOV Withstand 5s	UT	335V 335V 335V 580V
	UT	440V 440V 440V 765V
TOV 120min	Mode	Safe Fail Safe Fail Safe Fail Safe Fail
Number of Ports		1
UL Electrical
Maximum Continuous Operating Voltage (AC)	MCOV	275V 320V 385V 440V
Voltage Protection Rating	VPR	900V 1200V 1350V 1500V
Nominal Discharge Current (8/20 μs)	In	20kA 20kA 20kA 20kA
Short-Circuit Current Rating (AC)	SCCR	150kA 150kA 150kA 200kA
Mechanical & Environmental
Operating Temperature Range	Ta	-40oF to +158oF [-40oC to +70oC]
Permissible Operating Humidity	RH	5%…95%
Atmospheric pressure and altitude		80k Pa … 106k Pa / -500m … 2000m
Terminal Screw Torque	Mmax	39.9 Ibf·in [2.0~2.5 N.m]
Conductor Cross Section (max)		2 AWG (Solid, Stranded) / 4 AWG (Flexible)
		35mm2 (Solid, Stranded) / 25mm2 (Flexible)
Mounting		35mm DIN Rail, EN 60715
Degree of Protection		IP20(built-in)
Housing Material		Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection		Yes
Operating State / Fault Indication		Green: ok / Red: defect
Remote Contacts (RC)		Optional
RC Switching Capacity		AC:250V / 0.5A; DC:250V / 0.1A; 125V / 0.2A; 75V / 0.5A
RC Conductor Cross Section (max)		16AWG (Solid) / 1.5mm2 (Solid)
