Overview

Basic Info.

Model NO.	YH10W-3
Installation	Parallel Arrester
Application	Line Distribution Lightning Surge Arrester
Size	Meidum
Operation Voltage	High Voltage
Shape	Spiral
Material	Ceramic
Certification	ROHS, ISO9001, CCC
Brand	Optelec or OEM
Name	Line Distribution Lightning Surge Arrester
Transport Package	Wooden Cartons
Specification	CE, RoHS, SGS, ISO
Trademark	powtech
Origin	China
HS Code	85044020
Production Capacity	5000PCS/Month

Packaging & Delivery

Package Size15.00cm * 15.00cm * 10.00cm Package Gross Weight3.000kg

Product Description

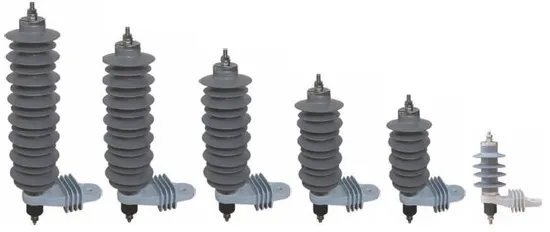

Good Quality Line distribution lightning surge arrester
Features:

1.Has the advantages of small volume,light weight, resistance to impact,transport without damage ,flexible installation,suitable for use in the switch cabinet.
2.Special structure,integrally molded, no gas gap,good sealing performance,moisture-proof, explosion-proof;
3. Big creepage distance,good hydrophobicity,strain resistant capability,stable performance,reduce operation and maintenance;
4.Unique formula of zinc oxide varistor, the leakage current is small,the aging speed, long service life.
5.With the DC reference voltage square wave,flow capacity and large current withstand capability are higher than the national standard.

Conditions Of Use

1.Power frequency:48Hz~62Hz
2.Ambient temperature:-40 degree to + 40 degrees C
3.The maximum wind speed of no more than 35m/s
4.Altitude not exceeding 2000m
5.No more than 8 degree earthquake intensity
6.Ice thickness is less than 10mm
7.Long applied voltage does not exceed the maximum continuous operating voltage of the rays of the sun:
solar maximum irradation(1.1kw/mm²)impact has been in the product type test to be considered,if the arrester has in the vicinity of other sources, lighting arrester used for both sides.

Founded in 1994 and headquartered in Qingdao, China, Qingdao Powtech Electronic Co., Ltd is a trailblazing high-tech enterprise dedicated to designing, manufacturing, and supplying advanced solutions for telecommunications and power transmission industries. With over 30 years of expertise, we combine innovation, precision engineering, and customer-centric values to deliver reliable, sustainable technologies worldwide.

Mission: "From Design to Delivery, Powtech Offers You Reliability".
Vision: To pioneer sustainable technologies that connect communities and power global progress

Q1:Can u provide us with samples?
Ans1: Yes, we can provide 1 to 2pcs samples for free.

Q2:If we need customized/OEM product, Can u supply?
Ans2: Yes,Customized/OEM product/artwork is available for us. Professional designers, Advanced technicians and mold modifications department ensure that we will make the exact model for u accordingly.

Q3:If u can accept small trial order?
Ans3: Yes, small trial order is accepted.

Q4:What payment terms available for u?
Ans4: We accept TT, LC, Alipay etc.

Q5:Can u offer discount?
Ans5: Yes, Discount available on large order. The larger the order, the more discount we will offer.

Q6:What is ur delivery time?
Ans6: Usually, delivery will be made within 2 weeks after down payment; If order very large,one month we will need. Please note, delivery time is production time, and shipping time not included. If u want to know, we can help u consult shipping company for details.

Model	Rated voltage KV(r.m.s)	MCOV KV(r.m.s)	DC 1mA reference voltage (kV) ≥	Current impulse residual voltage			Long impulse current 2000μs (A)	High current impulse withstand (kA)	0.75 DC Senate reference voltage maximum leakage stream	Creepage distance (mm)
				1/4μs Steep current impulse KV(crest)	8/20μs Lightning current impulse KV(crest)	30/60μs Switching current impulse KV(crest)
YH5W-3	3	2.55	4.5	11.3	9	8.9	150	65	<50	280
YH5W-9	9	7.65	13.5	33.7	27	23.8	150	65	<50	300
YH5W-11	11	10.2	16.5	42.2	36	27	150	65	<50	350
YH5W-21	21	17	31.5	71.8	63	54.2	150	65	<50	650
YH5W-24	24	19.5	36	82	72	62	150	65	<50	650
YH5W-33	33	27.5	49.5	112	99	86.7	150	65	<50	780
YH5W-36	36	29	54	117	103	92.4	150	65	<50	910
YH10W-3	3	2.55	4.5	11.3	9	8.9	250	100	<50	280
YH10W-9	9	7.65	13.5	33.7	27	23.8	250	100	<50	300
YH10W-11	11	10.2	16.5	42.2	36	27	250	100	<50	350
YH10W-21	21	17	31.5	71.8	63	54.2	250	100	<50	650
YH10W-24	24	19.5	36	82	72	62	250	100	<50	650
YH10W-33	33	27.5	49.5	112	99	86.7	250	100	<50	780
YH10W-36	36	29	54	117	103	92.4	250	100	<50	910
